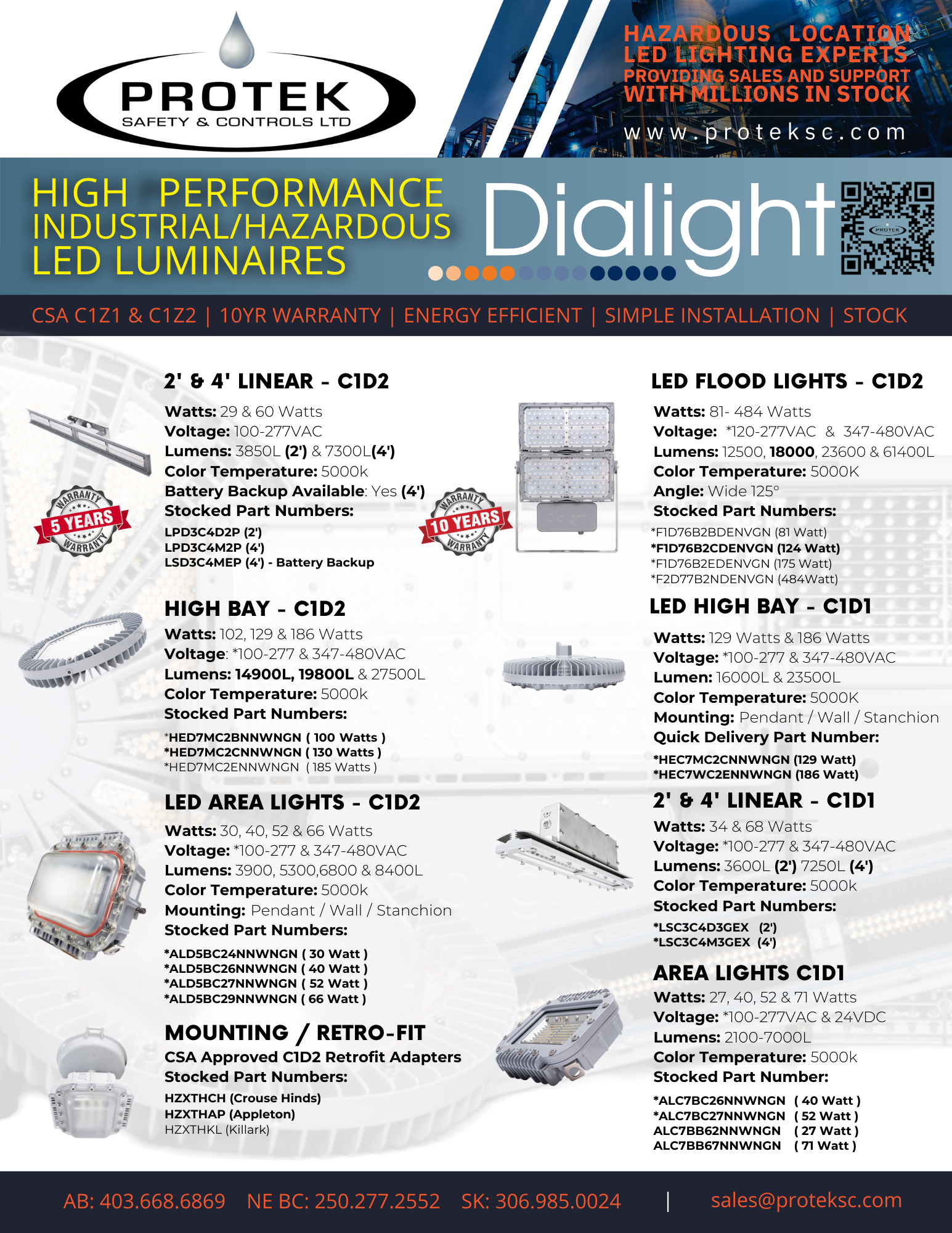

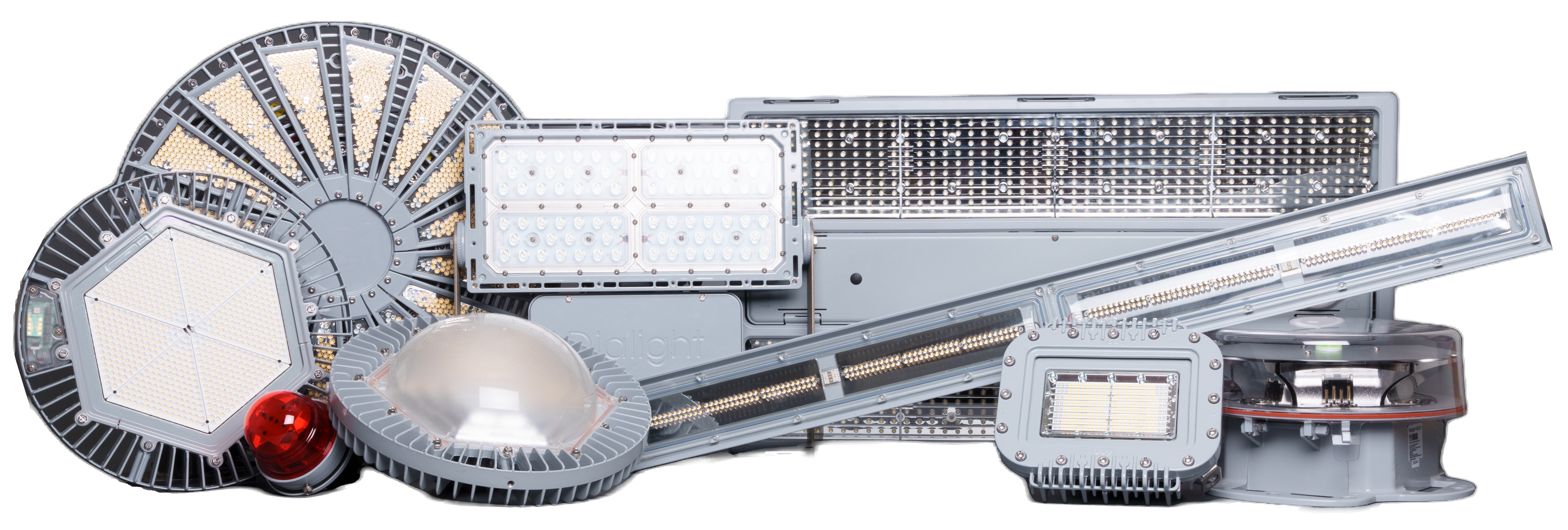

High Bay
Offering the widest range of hazardous certifications in the industry, Dialight’s SafeSite High Bay robustly withstands the harshest conditions and virtually eliminates lighting maintenance to improve site efficiency and safety. Designed for use in oil and gas (including offshore), chemical, mining, pulp & paper and other volatile environments. The SafeSite High Bay is rated for over 150,000 hours and most models are covered by Dialight’s 10-year warranty.
Vigilant Series
Non – Hazardous
UL 1598/A, CSA, NOM, CE, RCM
11,000 – 41,300 lumens
Up to 200 lumens per watt
100-277 VAC, 347/480 VAC, 120-250 VDC
Up to 40’ (12m) mounting height
10 year warranty
P/N:HEU7MC2BNNWNGN (100W)
P/N: HEU7MC2CNNWNGN (129W)
P/N:HEU7MC2ENNWNGN (185W)
Safesite Series
Hazardous
UL 844(C1D1,C1D2,CIID1,CIID2,CII)
IECEx/ATEX (Zone 1, Zone 2) CSA, INMETRO
8 000 – 27 000 lumens
Up to 151 lumens per watt
100-277 VAC, 347/480 VAC, 120-250 VDC
Up to 40’ (12m) mounting height
10 year warranty
Legacy P/N: HEDGMC4KN-SNG Equivalent:
P/N:HED7MC2CNNWNGN (129W)
P/N: HED7MC2BNNWNGN (100W)
P/N:HED7MC2ENNWNGN (185W)
Common Accessories
HBXW2
High Bay Swivel Bracket and Cable Gland
HZXSTAN200S
Slip-Fit Stanchion Mount Junction Box
Flood Lights
The Dialight Prosite® LED Floodlight luminaire was designed specifically to replace conventional lighting in a wide variety of outdoor hazardous area applications. Its low profile light weight design and versatile mounting options make it ideal for Floodlight applications for UL844 classified hazardous area zones (CID2, CIID1, CIID2, CIII). Dialight’s long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.

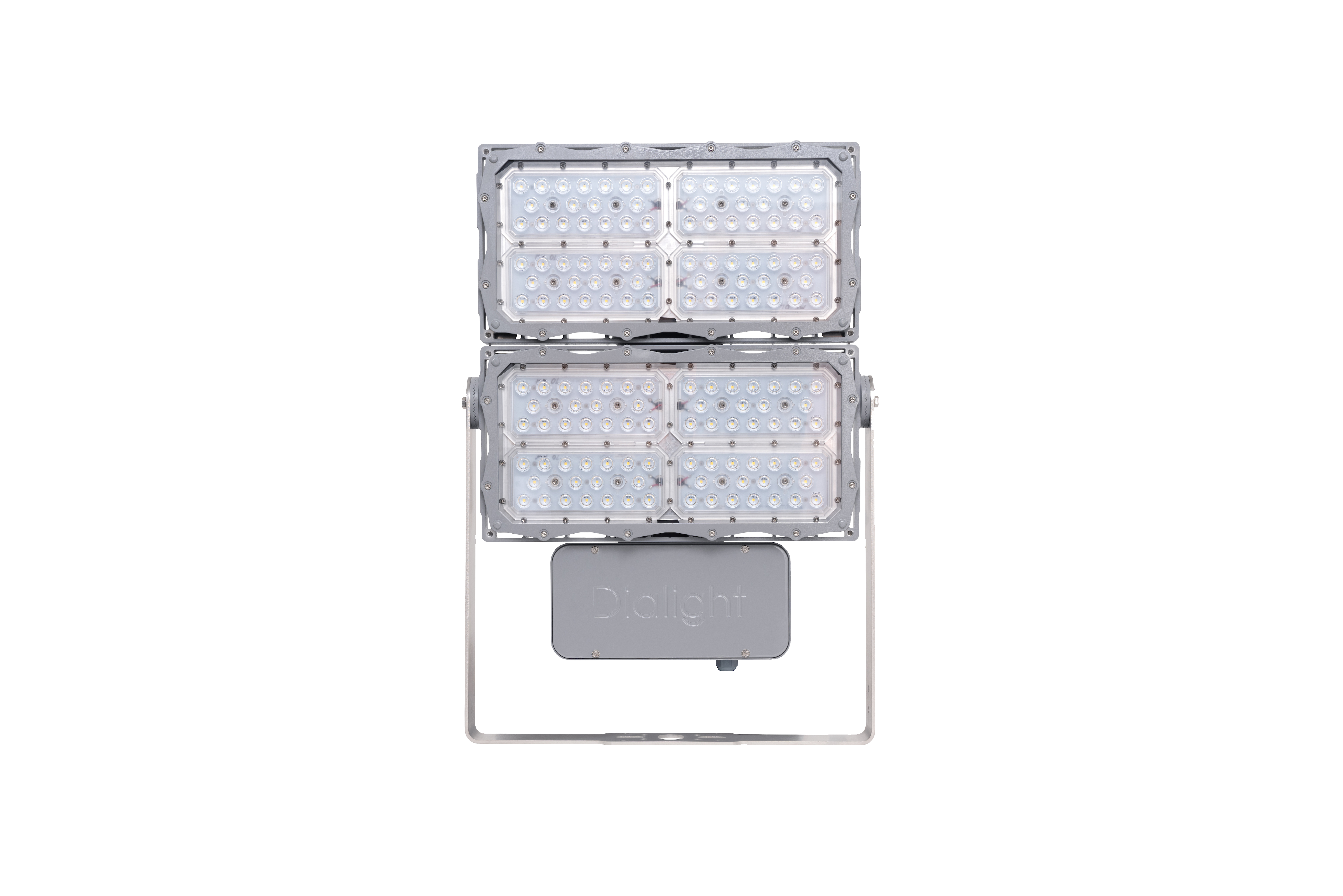

Prosite F1 Model
Hazardous Location
UL 844 / CSA C22.2 No. 137
12 000 – 30 000 lumens
Up to 154 lm/W
100-277 VAC, 347/480 VAC
Up to 40’ (12m) Mounting Height
10 year warranty
P/N: F1D76B2BDENVGN (81 Watt)
P/N: F1D76B2CDENVGN (124 Watt)
P/N: F1D76B2EDENVGN (175 Watt)

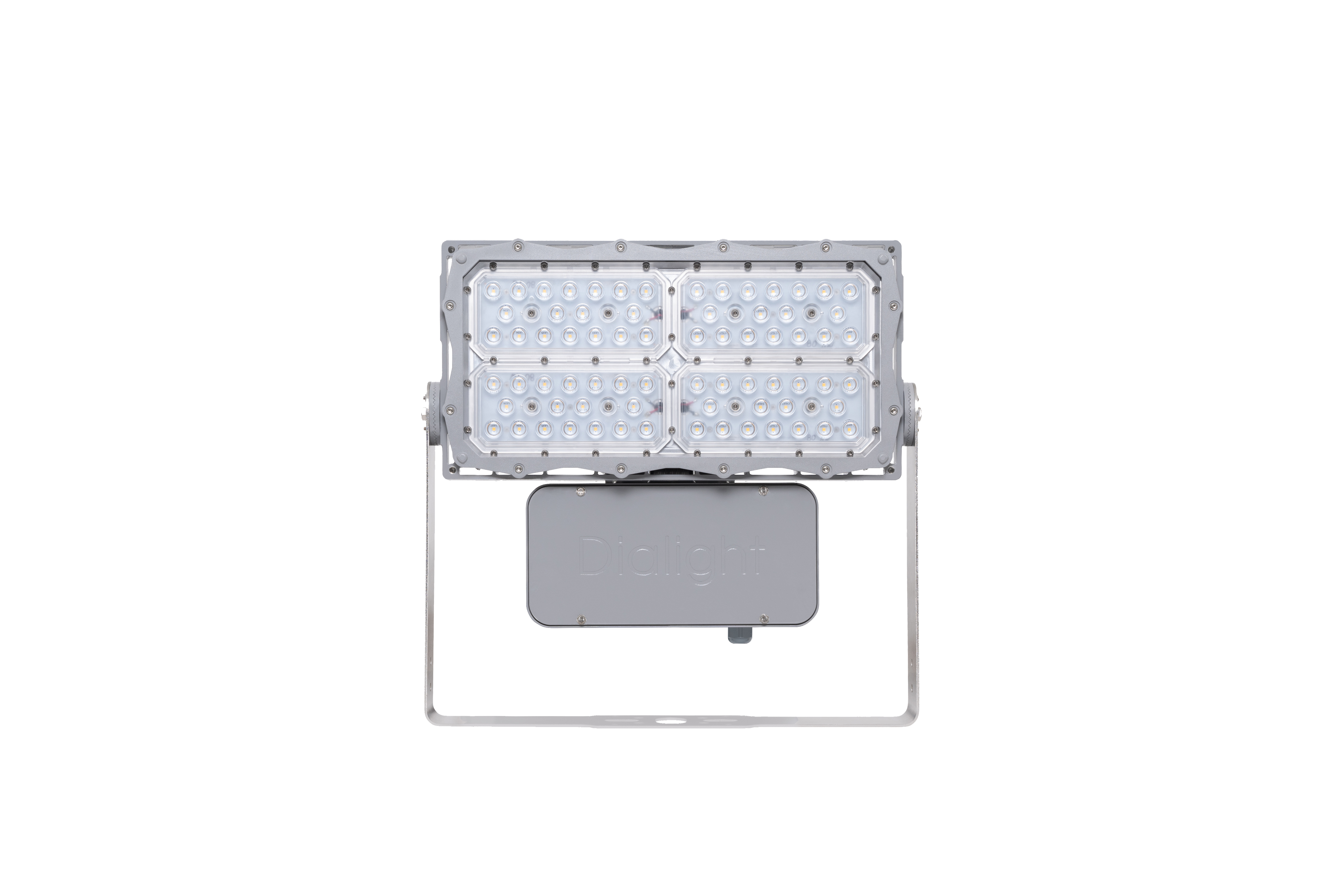

Prosite F2 Model
Hazardous Location
UL 844 / CSA C22.2 No. 137
30 000 – 60 000 lumens
Up to 151 lm/W
100-277 VAC, 347/480 VAC
Up to 100’ (30m) Mounting Height
10 year warranty
P/N: F2D77B2HDENVGN (234Watt)
P/N: F2D77B2LDENVGN (346Watt)
P/N: F2D77B2NDENVGN (484Watt)
Common Accessories
FLX-1TPT-20DB
Tenon pole topper, 2-3/8” mount
Area Lights
Providing the longest-lasting, most widely certified hazardous location Area Light in the industry, the Dialight Area Light tolerates the harshest conditions and virtually eliminates maintenance to improve site efficiency and safety. Backed by Dialight’s 10 year warranty, the Dialight Area Light offers superior safety and durability for oil and gas, chemical, mining, offshore, particulate and other volatile environments.
Vigilant Series (General Purpose)
Non – Hazardous
UL 1598/A, CE, CSA, ENEC, RCM, NOM
2,800 – 9,000 Lumens
Up to 143 lumens per watt
100-277 VAC, 347/480 VAC, 120-250 VDC
Up to 20’ (7m) mounting height
10 year warranty
P/N:ALU5BC24NNWNGN (30W)
P/N:ALU5BC26NNWNGN (40W)
P/N: ALU5BC27NNWNGN (52W)
P/N: ALU5BC29NNWNGN (66W)
Safesite Series
Hazardous
UL 844 (CID1, CID2, CII, CIII), CSA,
IECEx/ATEX (Zone 1, 21, Zone 2, 22)
2,800 – 9,000 lumens
Up to 143 lumens per watt
100-277 VAC, 347/480 VAC, 120-250 VDC
Up to 20’ (7m) mounting height
10 year warranty
P/N:ALD5BC24NNWNGN (30W)
P/N:ALD5BC26NNWNGN (40W)
P/N: ALD5BC27NNWNGN (52W)
P/N: ALD5BC29NNWNGN (66W)
Built in Junction Box
P/N:ALD5BCXXNNWNGN +
P/N:HZXUMA +

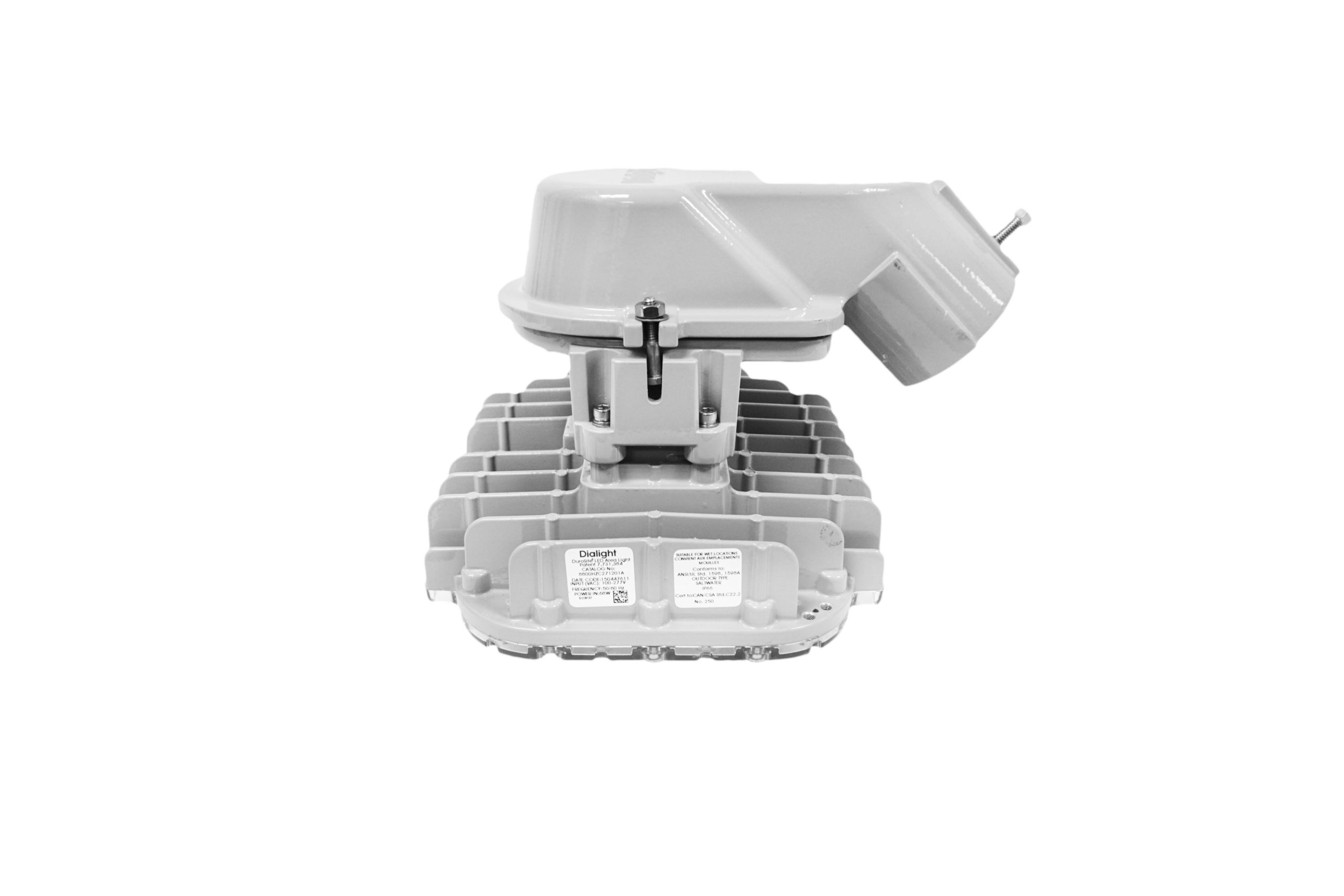

P/N:HZXS45
P/N:HZXW45
P/N:HZXW01
P/N:HZXFM
P/N:HZXS90

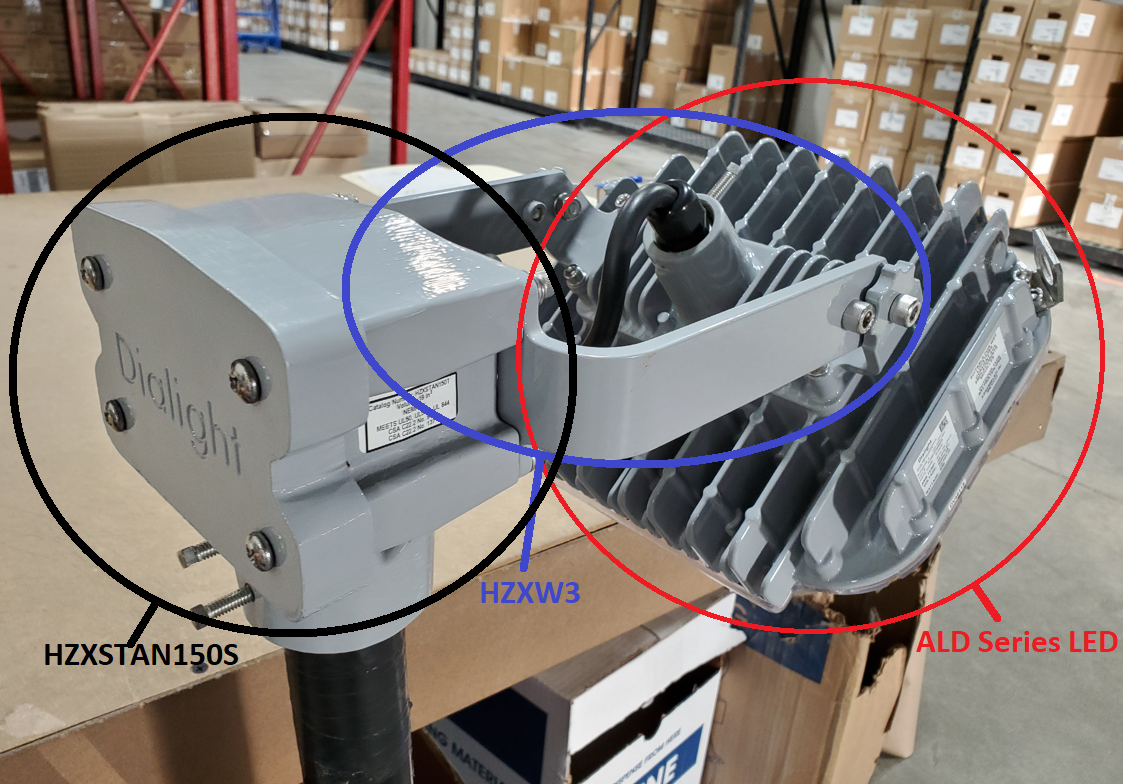

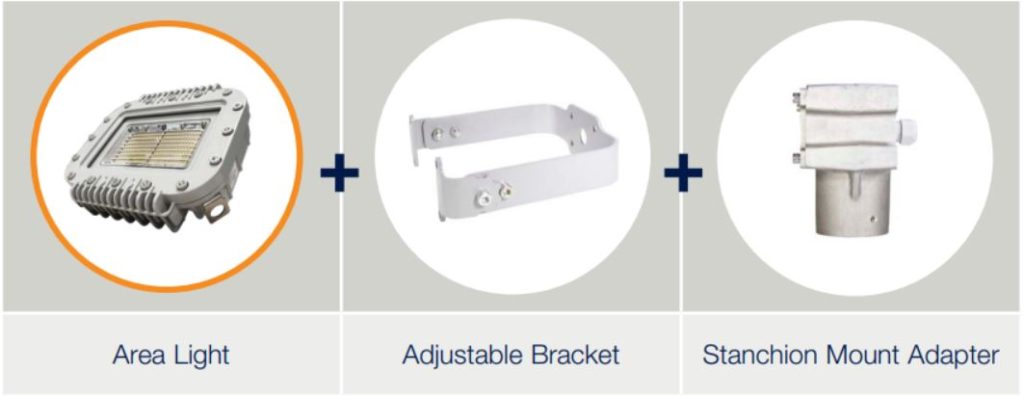

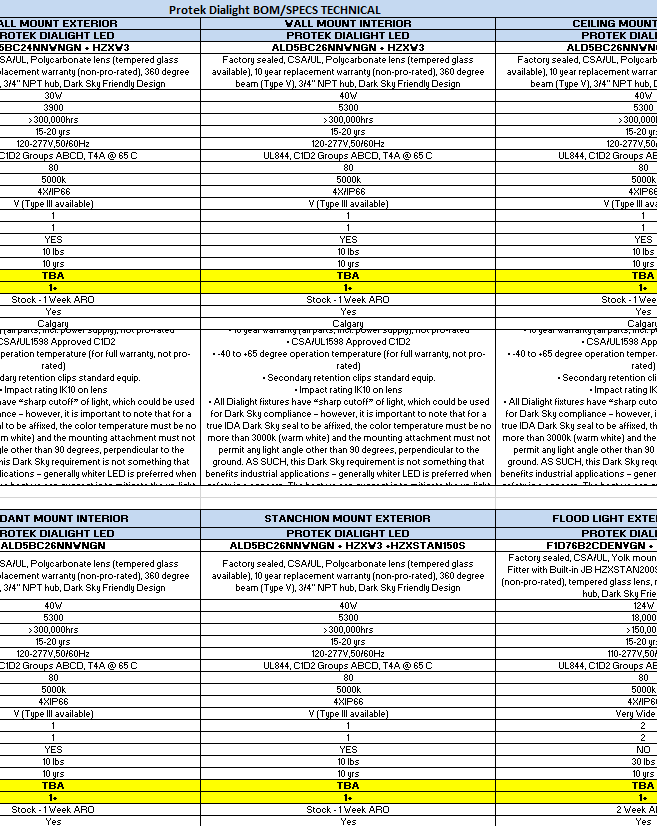

Common Accessories
P/N:ALD5BCXXNNWNGN+
P/N:HZXW3=Wall Mount +
P/N:HZXSTAN150S=1.5″Pole Mount
P/N:HZXSTAN200S=2.0″Pole Mount
Retro-fit Top Hats
P/N:HZXTHCH – Crouse Adapter
P/N:HZXTHGE – GE Adapter
P/N:HZXTHP3 – Holophane Adapter
P/N:HZXTHTB – T&B Adapter
P/N:HZXTHAP – Appleton MM3
P/N:HZXTHM2 – Appleton MM2
P/N:HZXTHKL – Killark Adapter
Safesite Series
Hazardous
UL 844 (CID1, CID2, CII, CIII), CSA,
IECEx/ATEX (Zone 1, 21, Zone 2, 22)
2,800 – 7,000 lumens
Up to 107 lumens per watt
24-48 VDC 24-48 VDC
5 year warranty
Zone 1:
P/N: ALC7BB62NNWNGN (27W)
P/N: ALC7BB65NNWNGN (49W)
P/N:ALC7BB67NNWNGN (71W)
Zone 2:
P/N: ALD5BB62NNWNGN (27W)
P/N: ALD5BB67NNWNGN (71W)

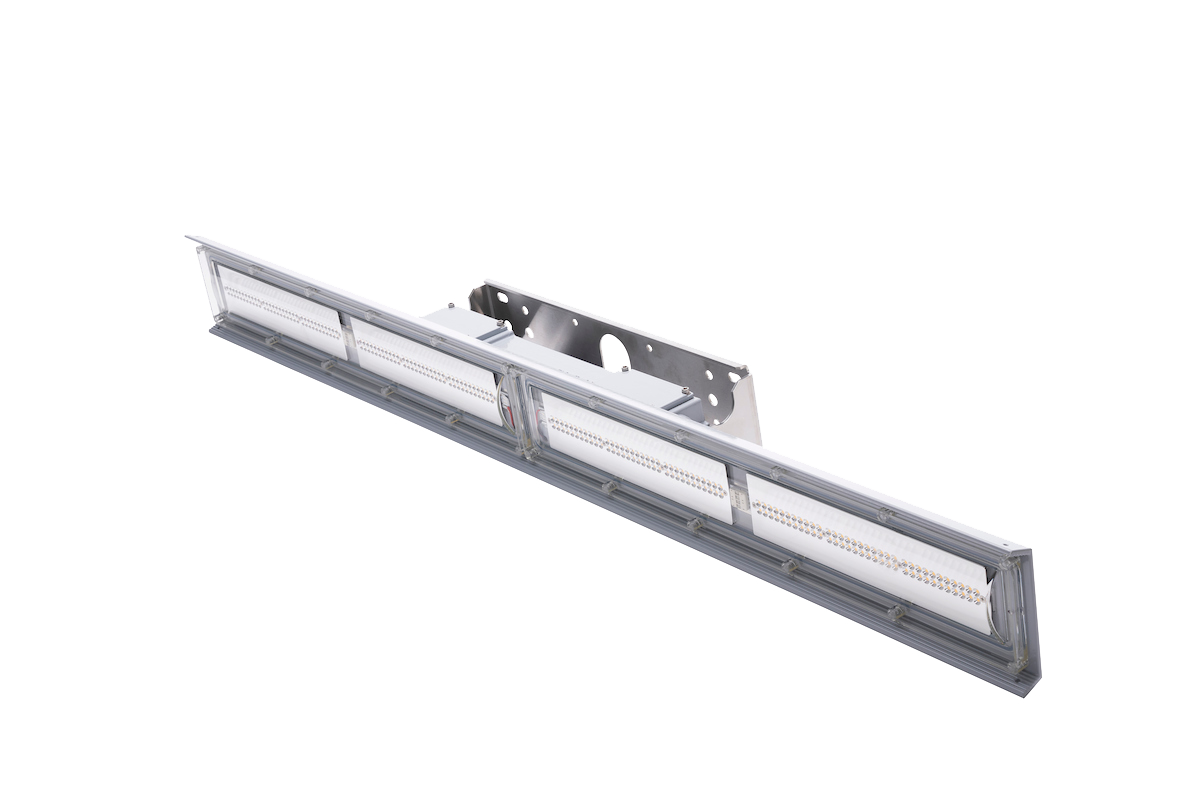

Linear Lights
Dialight’s LED Linear portfolio offers rugged, long-life, solid-state designs that resist shock and vibration to eliminate the cost and hassle of lighting maintenance. Available in both 2′ and 4′ lengths, our LED linear portfolio provides options to suit your every need, including our lightweight Low Profile/Top Conduit Linear, our durable Stainless Steel Linear, our hazardous range Class I, Division 1 Linear and Zone 1 Linear, our Battery Backup Linear and our versatile End-to-End Linear.
Safesite Series
Hazardous
UL 844 (CID2, CIID2,CIII) CSA
2,700 – 9,600 lumens
Up to 133 lm/W
100-277 VAC
Up to 20’ (6m) Mounting Height
5 year warranty
P/N: LPD3C4D2P + LPXW4 (2′)
P/N:LPD3C4M2P + LPXW4 (4′)
10 year warranty
P/N: LKD4MC27DNNNGN + LPXW4 (2′)
P/N:LJD4MC23DNNNGN + LPXW4 (4′)
Catwalk Lighting
Hazardous
UL 844 (CID2, CIID2,CIII) CSA
3,300 – 7900 lumens
Up to 133 lm/W
100-277 VAC
Up to 20’ (6m) Mounting Height
5 year warranty

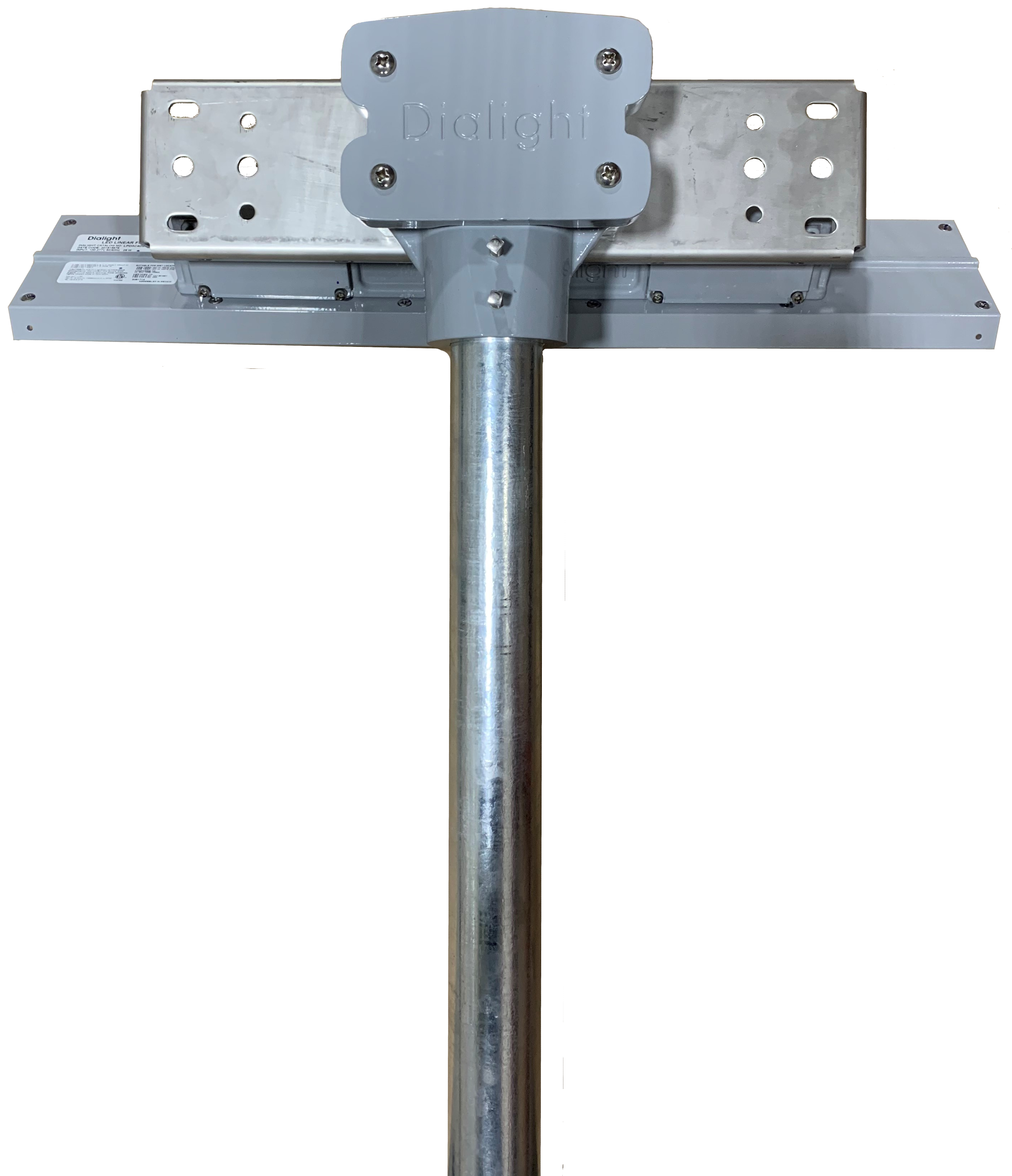

P/N: LPD3C4D2P +
P/N: LPXW4 +
P/N: HZXSTAN150S (1.5″Stanchion)
P/N: HZXSTAN200S (2″ Stanchion)
P/N:LPD3C4M2P (4′ Version)
Common Accessories
Low Profile Bracket
Can be angled at 0°, 30°, 45° & 90°
316 stainless steel mounting bracket
P/N: LPXW4
Top Mount Bracket
Can be angled at 0°, 30°, 45° & 90°
316 stainless steel mounting bracket
P/N: LTXW4
RTO Series
Hazardous
CID2 Grp A,B,C,D
C2D1 Grp E,F,G
UL 844, CSA C22.2 250&13
12-48 VDC / 100-277 VAC
IP66 NEMA 4X
800 lumens
5 year warranty
P/N:RTO2W18001 (VDC)
P/N:RTO2W17005 (VAC)
