Say Goodbye to Outdated Systems – Introducing Protek’s Universal Display Module!

Replace your old 2-3 wire gas detection systems with our versatile Universal Display Module – Multi Wire Option (UDM-MWO) and SEC Gas Detection, supporting both single and dual channel configurations with optional Relay Contacts. This module provides the ability to upgrade to the most advance sensor technology providing reliable performance and easy integration while using the existing wiring infrastructure. Engineered for durability, reliability and precision, the UDM-MWO is the modern solution you’ve been waiting for to ensure safety and compliance in hazardous environments. Start your transition today!

UDM-MWO-001 & UDM-MWO-002 Dual Channel Universal Display Module Key Features

  • Single or Dual Channel display
  • Remote sensor separation
  • Pass through 4-20 mA signal
  • User friendly Universal interface across multiple brands of gas detection
  • Epoxy painted explosion-proof 316 stainless steel enclosure
  • Operating temperature: -55°C to +75°C

  • Display combination of detectors can be LEL/H2S, LEL/LEL H2S/H2S, etc.

  • Remote calibration of gas sensor

  • Toggle channel display On or Off

  • Field replaceable UV protected OLED display
  • Active display to optimize long life OLED’s
  • Made in Canada built to withstand Canadian weather
  • Smart sensor technology (Auto configuration)
  • Performance tested and certified to CSA C22.2 No.152

  • Certified by INTL to Canadian and US Standards

  • Conformal coated electronics
  • Zone 2 NO SEALS REQUIRED and Zone 1 seals required
  • Captive thumb screws for ease of instillation
  • Digital connection to sensor module
  • Low power consumption

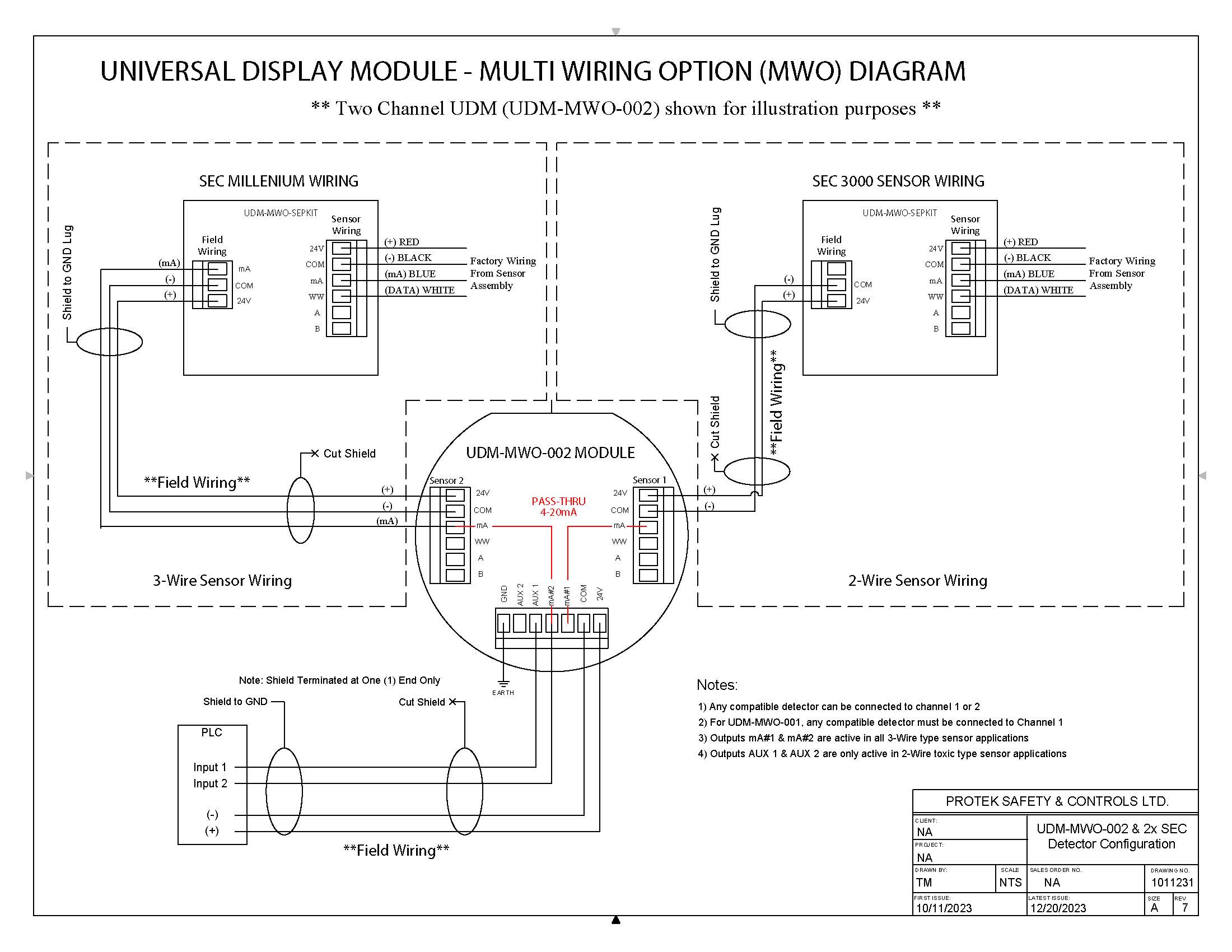

  • Certified 2 & 3 Wire Retro Fit Solution

  • Optional Relays Available

The Universal Display Module is a single or dual channel remote display module designed to achieve remote sensor separation for up to two gas detectors.

UDM-001 & UDM-002 Dual Channel Universal Display Module Key Features

  • Single or Dual Channel display
  • Remote sensor separation
  • Pass through 4-20 mA signal
  • User friendly Universal interface across multiple brands of gas detection
  • Epoxy painted explosion-proof 316 stainless steel enclosure
  • Operating temperature: -40°C to +75°C

  • Display combination of detectors can be LEL/H2S, LEL/LEL H2S/H2S, etc.

  • Remote calibration of gas sensor

  • Toggle channel display On or Off

  • Field replaceable UV protected OLED display
  • Active display to optimize long life OLED’s
  • Made in Canada, built to withstand Canadian weather
  • Smart sensor technology (Auto configuration)
  • Performance tested to CSA C22.2 No.152
  • Certified by INTL to Canadian and US Standards
  • Conformal coated electronics
  • Zone 2 NO SEALS REQUIRED and Zone 1 seals required
  • Captive thumb screws for ease of instillation
  • 2 Year Warranty
  • Low power consumption
  • Digital connection to sensor module

Universal Sensor Separation Kits & Junction Boxes

Sensor Electronics

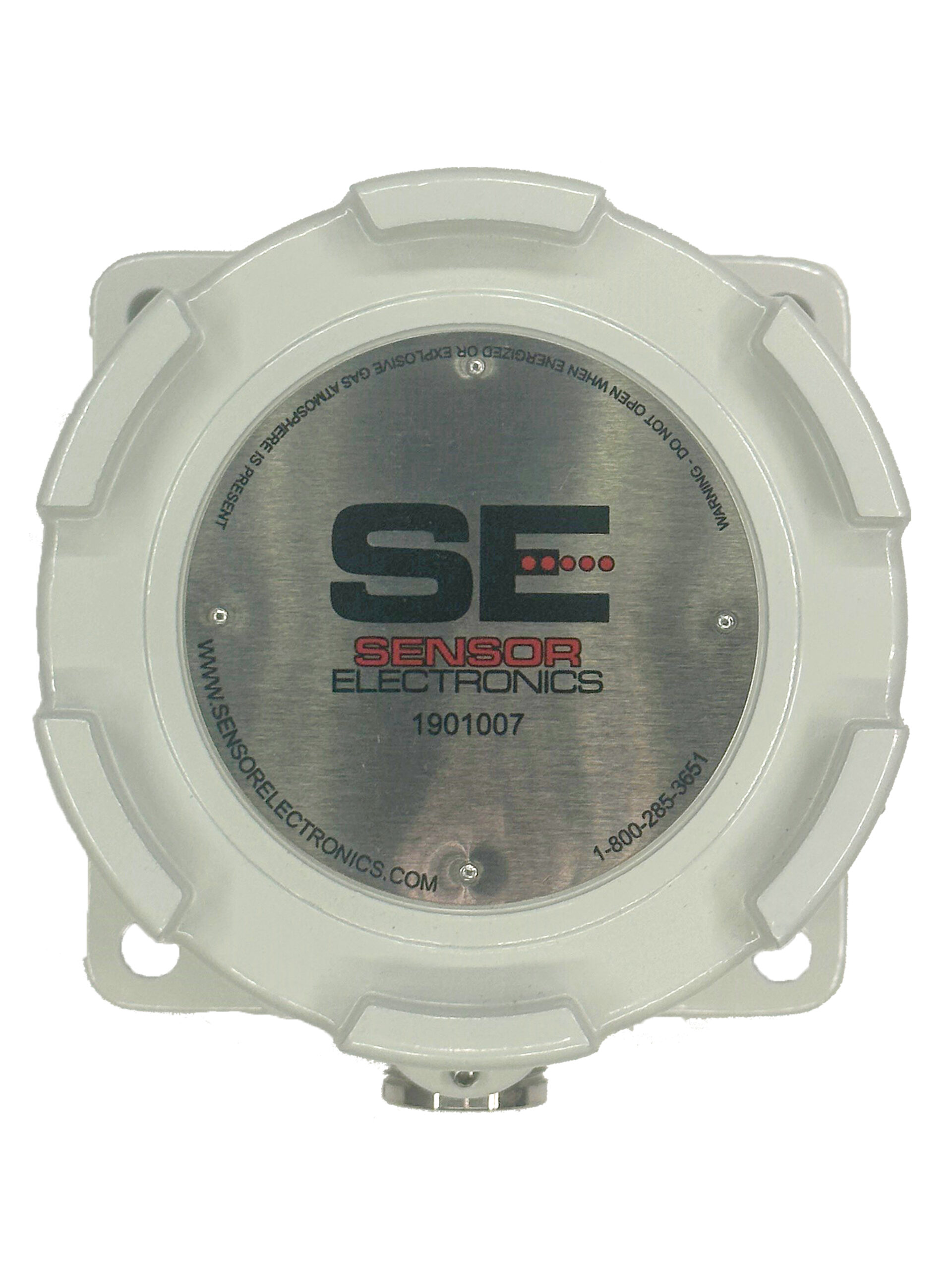

Sensor Separation Kit

UNV-SEPKIT-001

Protek Safety & Controls

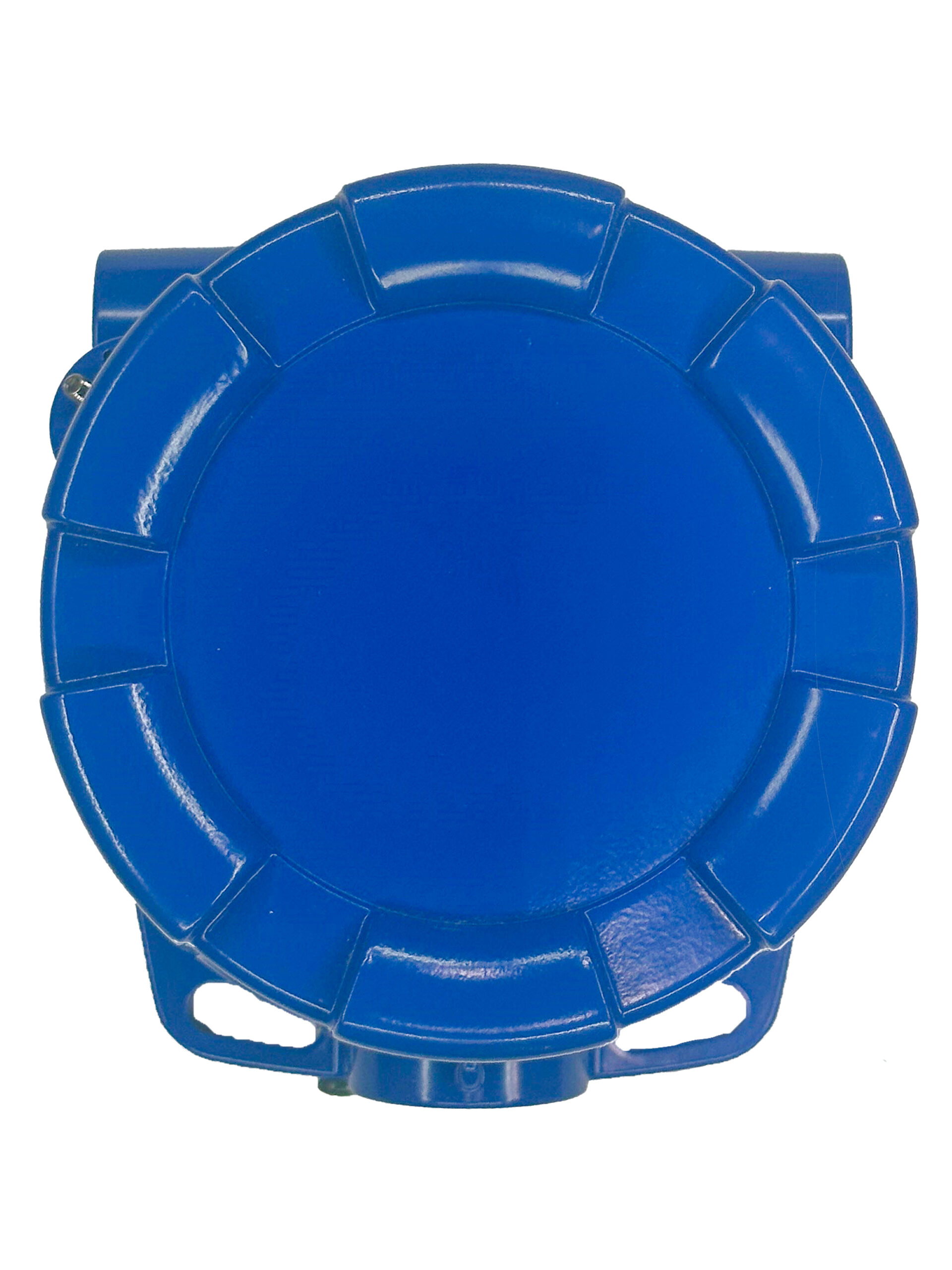

Sensor Separation Kit

UNV-SEPKIT-004

2-3 Wire Retro Fit

Sensor Separation Kit

UNV-MWO-SEPKIT

  • Certified for use with existing 2, 3 ,4, or 5 wire installations

  • Suitable for use in hazardous locations

  • -40°C to 70°C Operating Temperature

  • Epoxy painted explosion-proof 316 stainless steel enclosure

  • Allows for mounting the sensor away from its display/control device

  • C1D1 C1Z1 Seals Required

  • C1D2 C1Z2 No Seals Required

  • Certified by INTL to CDN and US Standards

  • 3 X 3/4 inch NPT

  • Certified for use with existing 2, 3 ,4, or 5 wire installations

  • Suitable for use in hazardous locations

  • -55°C to 85°C Operating Temperature

  • Epoxy painted explosion-proof 316 stainless steel enclosure

  • Allows for mounting the sensor away from its display/control device

  • C1D1 C1Z1 Seals Required

  • C1D2 C1Z2 No Seals Required

  • Certified by INTL to CDN and US Standards

  • 3 X 3/4 inch NPT

  • Certified for use with existing 2, 3 ,4, or 5 wire installations

  • Suitable for use in hazardous locations

  • -55°C to 85°C Operating Temperature

  • Epoxy painted explosion-proof 316 stainless steel enclosure

  • Allows for mounting the sensor away from its display/control device

  • C1D1 C1Z1 Seals Required

  • C1D2 C1Z2 No Seals Required

  • Certified by INTL to CDN and US Standards

  • 3 X 3/4 inch NPT
